Paper printers

Mini Lario Top-notchProductiveFlexible

MiniLario - 64 printheads, 8 colors - is the fastest scanning machine in the world earmarked for the Textile Industry that wants to carry on the revolution within its production chain to face and overcome the new challenges. MiniLario is the choice for those searching for: flexibility, quality, speed, energy efficiency and sustainability, all in one.

SEGMENTS

AND APPLICATIONS

Home Textile

Blinds and Fabrics for furniture

Fashion

Accessories

Productivity 1635 sqm/h

DOWNLOAD BROCHURE

Need more information?

CONTACT

US

WHY

TO CHOOSE MINILARIO

FAST AND RELIABILE
MiniLario is the fastest scanning machine in the world. Its accuracy and reliability standards are ensured by the MS brand awareness and what we believe in.

INDUSTRIAL PRODUCTIVITY
MiniLario gives printers the ideal combination of: speed, quality and precision. This allows us to completely change the current Textile Printing standards by scanning machines, through a process of constant improvement.

THE INNOVATIVE TECHNICAL FEATURES: PRINTING CARRIAGE
The printing carriage hanged on the printing bridge is an innovative solution which allows to catch up high-speed, accurate precision and total system stability. Moreover, it simplifies the maintenance operations being accessible from 3 sides.

INLET FABRIC SYSTEM
It consists of a heated driven pressure roll, with synchronized mechanical movement, for the best positioning of any kind of fabric on the transportation belt. Moreover, the system is equipped by spreading driven helical device to make easier the introduction of elastic fabrics.

DRYER WITH TOUCH SCREEN CONTROL SYSTEM
MiniLario’ s dryer has been developed to fit its operating conditions. It contributes in a positive way to achieve premium system performance.

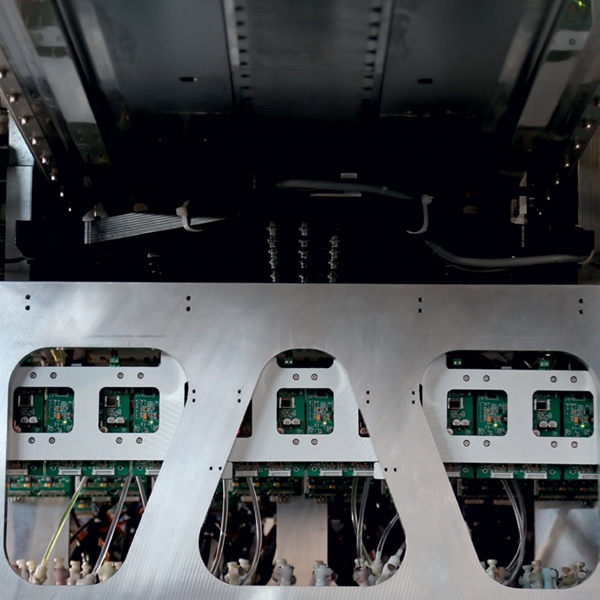

Printing carriage hanged on the printing bridge

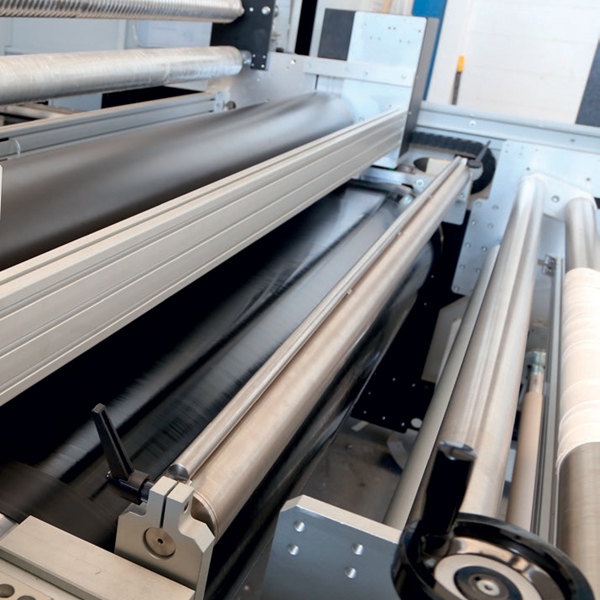

Inlet Fabric System

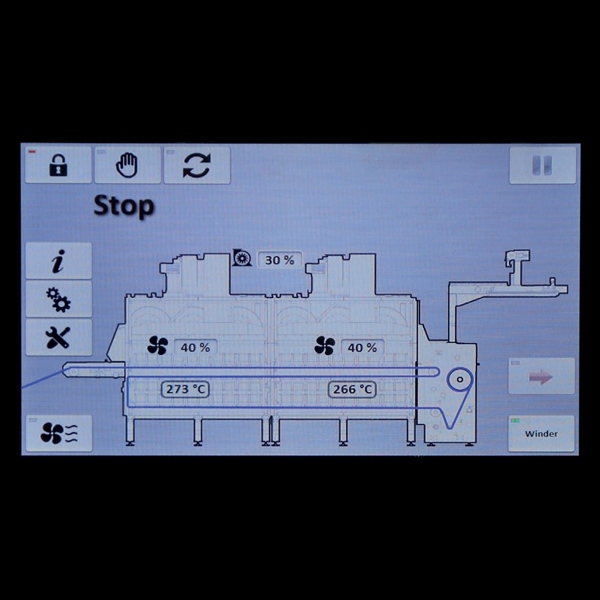

Dryer’s touch screen control system

SUSTAINABLE TECHNOLOGY

Developing sustainable technologies is our responsibility towards future generations. Thus, we have adhered to the “Sustainable Technologies” project sponsored by ACIMIT; its aim is to promote printing equipment which make smart use of: energy, chemicals and water resources. Project members undertake to: sign the project regulation; undergo the screening tests led by an authority for achieving the Green Label; apply “Supplier of Sustainable Technologies” logo to all the machines which have been awarded a Green Label.

DOWNLOAD GREEN LABEL

TECHNICAL SPECIFICATIONS
Printing Technology	Scanning
Printing Width	1800 - 3200
Max Nr° of colors	up to 8
Nr° of Print Heads	64
Max speed: 8 colors	1403 sqm/h
Max Speed: 2xCMYK	1635 sqm/h
Printing Resolution (dpi)	600 x 600
Print head native resolution (dpi)	600
Gray Levels	16
Drop Size	from 4 to 72pl
Inks System	OPEN
Software System	OPEN
Head crash protective system	■
Heated driven pressure roll	■
Embedded web server for cost report	■
Qwizard hardware	■
Wi-Fi Remote Control	-
Local printing queue management system	■
Acimit Green Label	■
Print Head program	■

NOTE:
The printing speeds have been recorded on different printing conditions. Please check specifics concerning printing mode and printing width in the related brochure.

COMPARE PAPER PRINTERS

Quality and reliability are a matter of details

Same Print Result (SPR) concept is at the core of our conviction and characterizes the entire range of MS products. For us it would be inconceivable to approach a new digital industrial printing technology without being able to multiply the productions in the future.
But it would be even more inconceivable to multiply the productions having to change the existing color-charts, without get the same chromatic printing results due to the use of different printing.
SPR means being able to choose any MS machine with the confidence that it can reproduce the same coloristic results, using the same printing conditions
