Textile printers

JP4 EVO TirelessFunctionalWin-Win

JP4 EVO machines are designed to print both on paper and on non-elastic fabric. They are the right choice to whom want to enter in the Industrial Digital Textile Printing Market by relatively moderate investments without compromise printing speed performance.

SEGMENTS

AND APPLICATIONS


Sportswear

Fashion

Productivity 210 m/h

DOWNLOAD BROCHURE

Need more information?

CONTACT

US

WHY

TO CHOOSE JP4 EVO

JP4 EVO are compact and functional optimizing the space and the resources used in the manufacturing process; thereby freeing up capitals for new investments generating more profits.

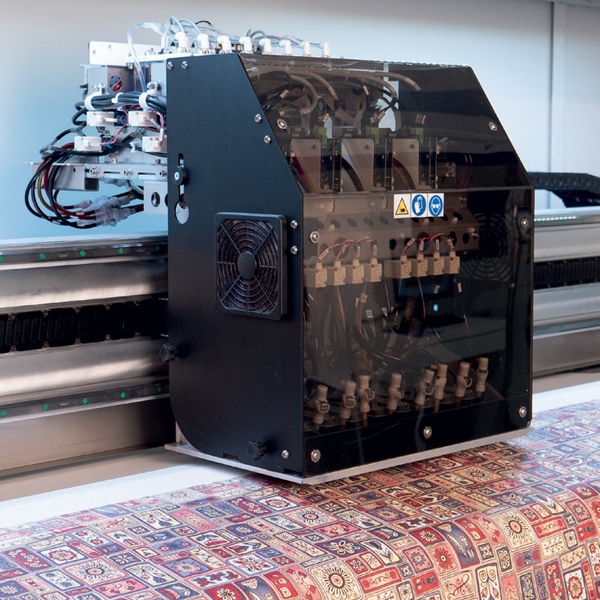

The 8 printheads installed on offer an higher density of drops in the drawing’s area at equal passes, enabling the top printing-speed performance.

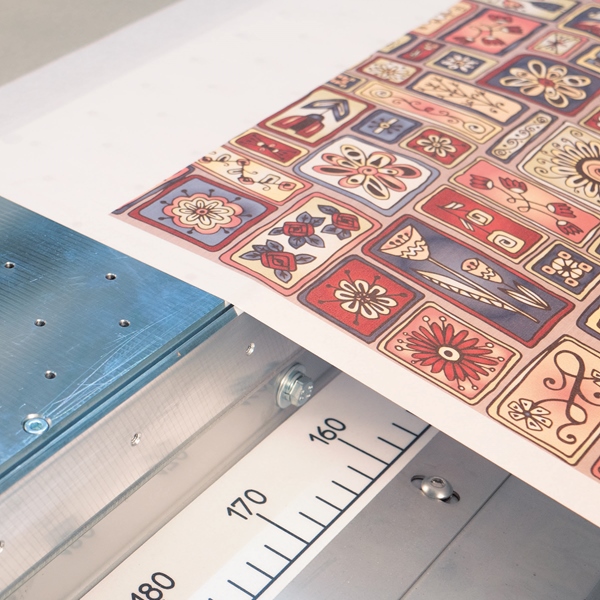

The printing vacuum plate permits the best adhesion and stability of the media during printing process thus a high-quality output

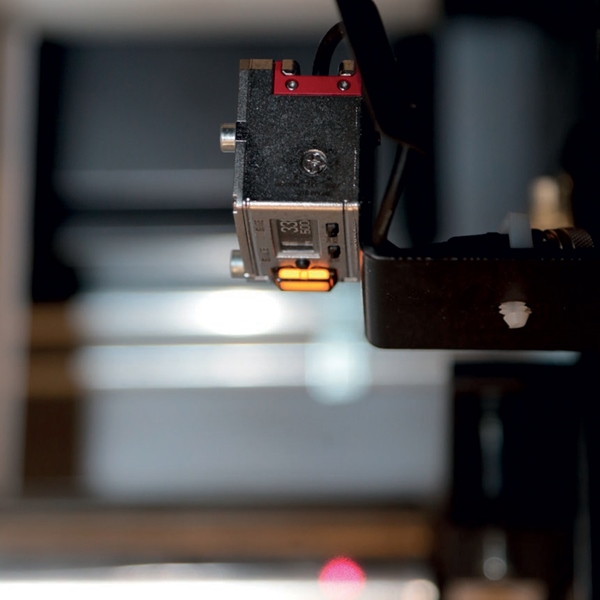

Paper compensator bar with laser sensor enables the perfect sync-movement of the paper at the maximum speed allowed by the machine

8 printheads
Printing vacuum plate
Paper compensator bar with laser sensor

layout styles

SUSTAINABLE TECHNOLOGY

Developing sustainable technologies is our responsibility towards future generations. Thus, we have adhered to the “Sustainable Technologies” project sponsored by ACIMIT; its aim is to promote printing equipment which make smart use of: energy, chemicals and water resources. Project members undertake to: sign the project regulation; undergo the screening tests led by an authority for achieving the Green Label; apply “Supplier of Sustainable Technologies” logo to all the machines which have been awarded a Green Label.

DOWNLOAD GREEN LABEL
TECHNICAL SPECIFICATIONS
Printing Technology Scanning
Printing Width 1800 - 3200
Max Nr° of colors up to 8
Nr° of Print Heads 8
Max speed: 8 colors 170 m/h
Max Speed: 2xCMYK 210 m/h
Printing Resolution (dpi) 600x600
Print head native resolution (dpi) 600
Gray Levels 16
Drop Size from 4 to 72pl
Inks System OPEN
Software System OPEN
Head crash protective system -
Heated driven pressure roll -
Embedded web server for cost report ■
Qwizard hardware -
Wi-Fi Remote Control -
Local printing queue management system -
Acimit Green Label ■
Print Head program ■
NOTE:
The printing speeds have been recorded on different printing conditions. Please check specifics concerning printing mode and printing width in the related brochure.
COMPARE TEXTILE PRINTERS
style switcher

Quality and reliability are a matter of details

Same Print Result (SPR) concept is at the core of our conviction and characterizes the entire range of MS products. For us it would be inconceivable to approach a new digital industrial printing technology without being able to multiply the productions in the future.
But it would be even more inconceivable to multiply the productions having to change the existing color-charts, without get the same chromatic printing results due to the use of different printing.
SPR means being able to choose any MS machine with the confidence that it can reproduce the same coloristic results, using the same printing conditions
