Textile printers

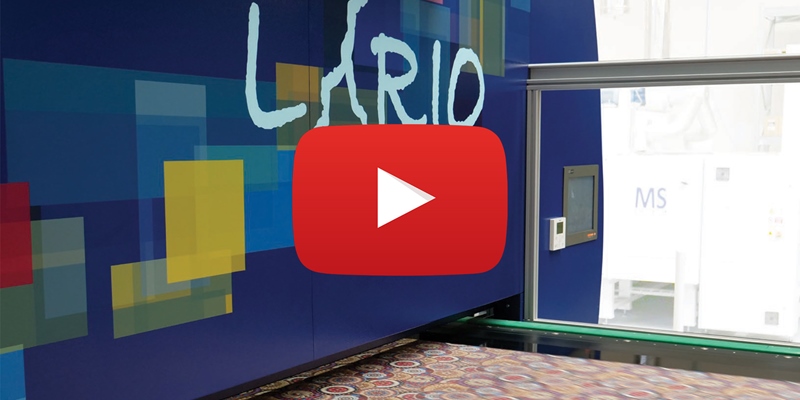

LaRio FastScalablePerforming

LaRIO, the first single-pass digital machine in the world debut in 2010, changing the paradigm of digital textile printing. LaRIO is unique. It challenges the world of rotary-printing machines by reaching a production speed of 120 m/min. LaRIO is the choice for those who process large volumes and need high speed and quality. LaRIO is the option for those producing for the Fashion System, be it Fast or Slow Fashion, which requires short load production times.

SEGMENTS

AND APPLICATIONS


3D materials and promotional

Home Textile

Blinds and Fabrics for furniture

Fashion

Accessories

Productivity 75 m/min

WHY

TO CHOOSE LARIO

FAST
LaRIO reaches its maximum efficiency in all the configurations, meeting Fashion time-to-market requests. No others digital printing technologies today available on the market can get you the same results

RELIABILE
LaRIO accuracy and reliability are proven by the 30 machines installed worldwide*. An outstanding result which appointed LaRIO as the most recognized and trusted single-pass in the market.
* figures refer to 06/2019

FLEXIBLE
With LaRIO, drawing or colorway change is easy and fast, avoiding the waste of paper, fabric and ink to speed up the production process. Elements that ensure the higher production capacity as well as the Return On Investments (ROI).

NON-STOP WINDER
The non-stop jumbo-roll winder collects the folded-fabric ensuring no machine downtime for roll changing, enhancing times and costs, especially in 24/7 cycles.

Meters Printed worldwide with lario printers
100.000.000 Mq

layout styles

SUSTAINABLE TECHNOLOGY

Developing sustainable technologies is our responsibility towards future generations. Thus, we have adhered to the “Sustainable Technologies” project sponsored by ACIMIT; its aim is to promote printing equipment which make smart use of: energy, chemicals and water resources. Project members undertake to: sign the project regulation; undergo the screening tests led by an authority for achieving the Green Label; apply “Supplier of Sustainable Technologies” logo to all the machines which have been awarded a Green Label.

TECHNICAL SPECIFICATIONS
Printing Technology Single Pass
Printing Width 1800 - 3200
Max Nr° of colors up to 12
Nr° of Print Heads according to configuration
Max Speed 75 m/min
Printing Resolution (dpi) 600x600
Print head native resolution (dpi) 600
Gray Levels 16
Drop Size from 4 to 72pl
Inks System OPEN
Software System OPEN
Head crash protective system
Heated driven pressure roll -
Embedded web server for cost report
Qwizard hardware -
Wi-Fi Remote Control
Local printing queue management system
Acimit Green Label
Print Head program
NOTE:
The printing speeds have been recorded on different printing conditions. Please check specifics concerning printing mode and printing width in the related brochure.

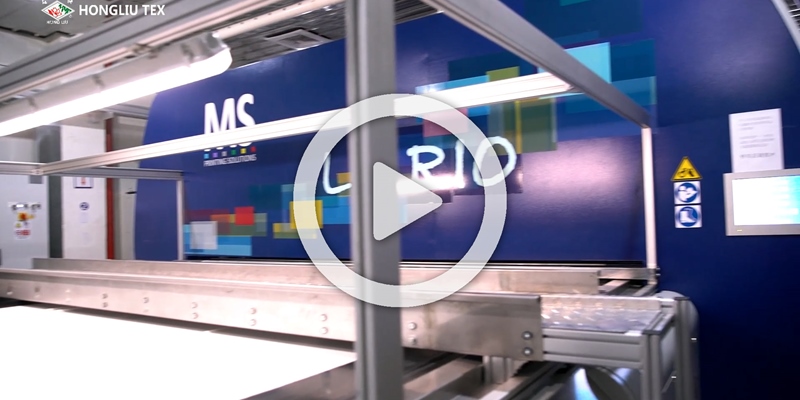

WORLDWIDE INSTALLATIONS OF LARIO
Textile - Direct
Textile - Transfer
Non Textile
style switcher

Quality and reliability are a matter of details

Same Print Result (SPR) concept is at the core of our conviction and characterizes the entire range of MS products. For us it would be inconceivable to approach a new digital industrial printing technology without being able to multiply the productions in the future.
But it would be even more inconceivable to multiply the productions having to change the existing color-charts, without get the same chromatic printing results due to the use of different printing.
SPR means being able to choose any MS machine with the confidence that it can reproduce the same coloristic results, using the same printing conditions
