TECHNICAL
SPECIFICATIONS
Ecovapor VLD 110MEcovapor VLD 210MEcovapor VLD 310MEcovapor VLD 410MEcovapor VLD 510M
Fabric Capacity110 m210 m310 m410 m510 m
Roller Width220 to 340 cm220 to 340 cm220 to 340 cm220 to 340 cm220 to 340 cm
Saturated Steam Operation102-106 °C102-106 °C102-106 °C102-106 °C102-106 °C
Steam Consumption500 to 600 kg/h600 to 800 kg/h700 to 1100 kg/h750 to 1400 kg/h800 to 1400 kg/h
High Temperature Operation180 °C180 °C180 °C180 °C180 °C
Diathermic Oil Temperature 260 °C260 °C260 °C260 °C260 °C
Installed Thermic Power - Gas burners206364 kcal/h - n.2 gas burners206364 kcal/h - n.2 gas burners412,728 kcal/h - n.4 gas burners412,728 kcal/h - n.4 gas burners412,728 kcal/h - n.4 gas burners
Installed thermic power64000 kcal/h128000 kcal/h192000 kcal/h256000 kcal/h320000 kcal/h
Working Speed2,2-20 m/min4,2-33 m/min6,2-42 m/min8,2-50 m/min10,2-56 m/mim
Dwell Time5,5 to 50 min6,4 to 50 min7,3 to 50 min8,2 to 50 min9,1 to 50 mim
Installed electric power101 kVA111 kVA163 kVA180 kVA195 kVA
Compressed Air Consumption2 l/min2 l/min2 l/min2 l/min2 l/min
Compressed Air Supply6 bar6 bar6 bar6 bar6 bar
WHY TO CHOOSE ECOVAPOR VLD

Real steam saturation
The MS sophisticated system generates the saturated steam directly in the steamer, assuring that the fixation process is always carried out in completely saturated steam. This increases colors’ intensity and brightness and reduces the urea content in the printing paste, for a more environmentally friendly process.

Continuous movement of the fabric transport chains
The continuous movement of the chains transporting the sticks is very important to avoid the two printed sides of each fabric loop inside the steaming chamber touching each other.
This mainly when treating digitally printed fabrics that have a higher tendency to color smearing due to the ink characteristics.

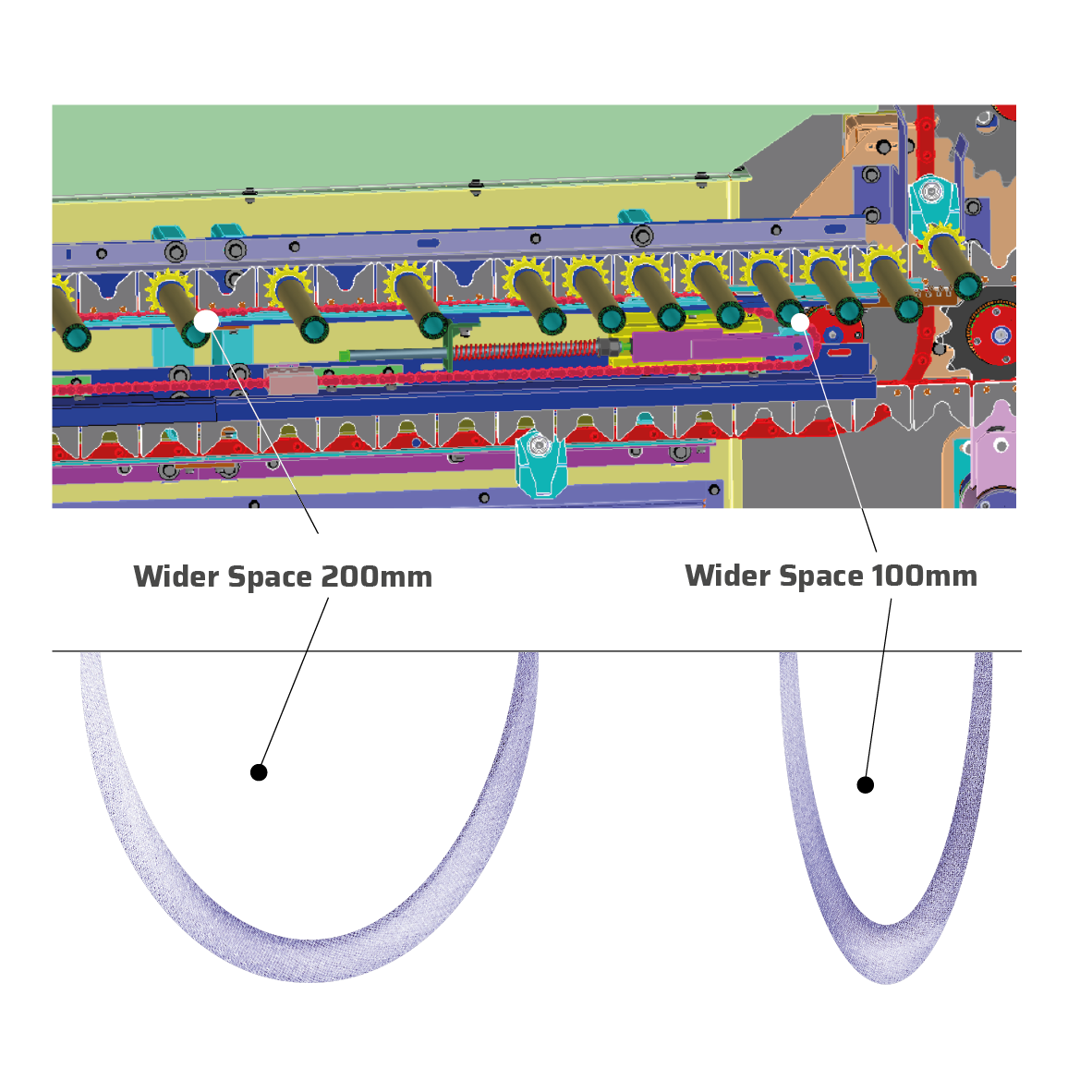

Automatic distance adjustment between folds from 100 to 200mm is crucial when processing very delicate digital printed fabrics

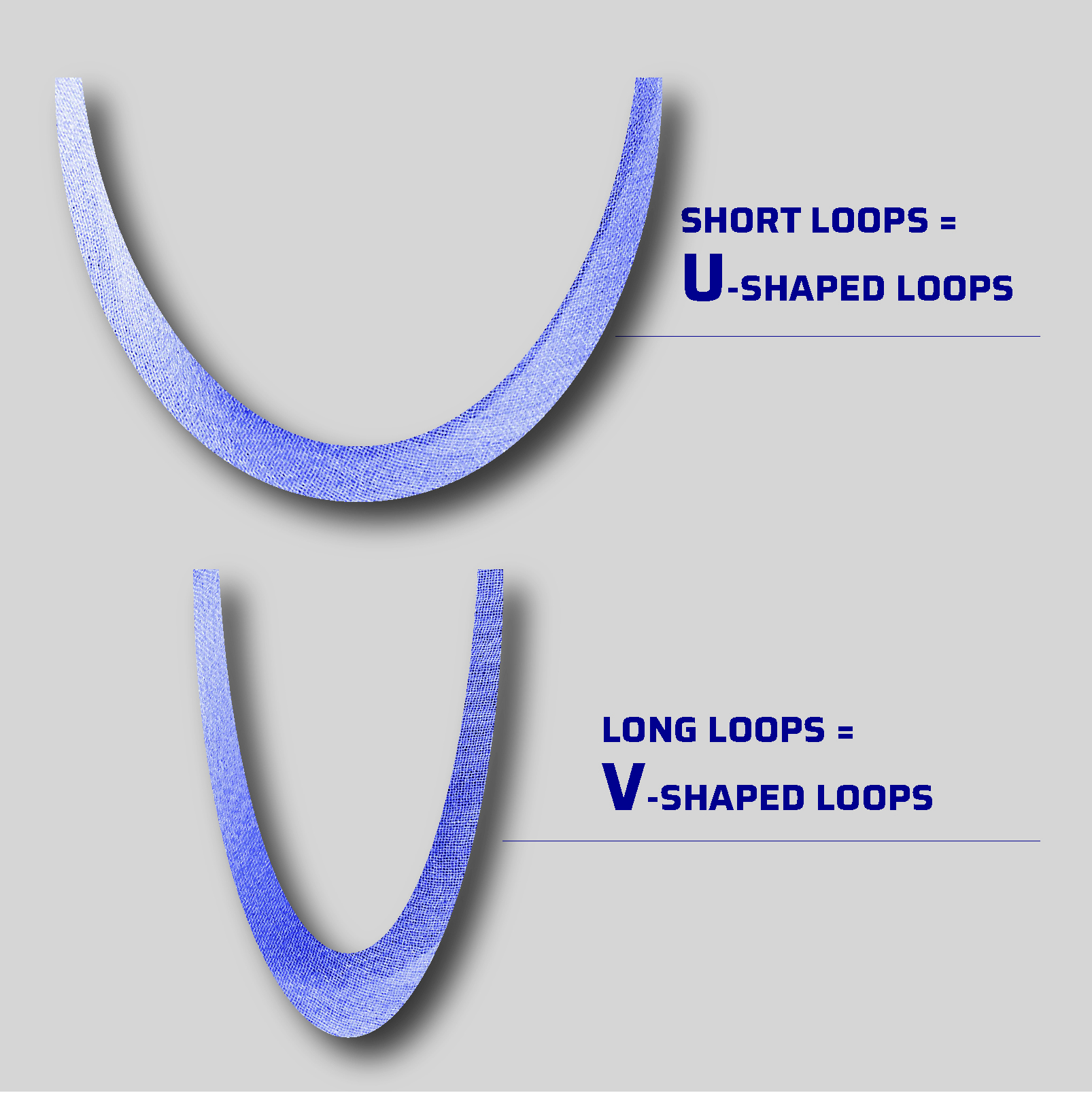

Short loop length
The maximum loop length in the Ecovapor steamer is only 2 m! The shorter the loop length the more regular the loops will be. Therefore, MS has chosen to keep a loop length of max. 2 m, assuring the U-shaped of the loop, rather than a V-shaped which could generate the big risk of the two printed sides of the fabric touching each other.

Advantage of MS system
Ecovapor generates the steam directly in the machine. This process assures consistency in the results.

Steam saving
MS steamer has been equipped with a steam conditioning circuit inside the chamber in order to avoid consuming further fresh steam during the process and thus saving energy and obtaining the best possible fixation at the lowest cost.
